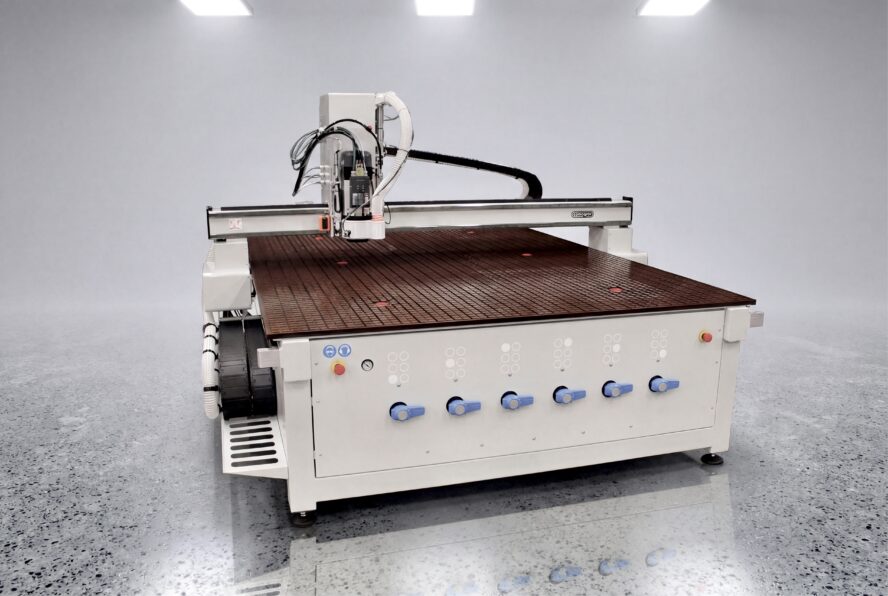

COMAGRAV NOTUS CNC Servo Router

COMAGRAV NOTUS – multifunctional, dynamic and affordable CNC servo router system

COMAGRAV NOTUS CNC Servo Router is an ideal choice for you.

COMAGRAV NOTUS is a professional CNC router for routing and cutting. It brings AC servo technology for maximum reliability and to achieve high cutting speeds. Everyone can choose from a wide range of work tables and spindles with an output of up to 9.6 kW. There are many cutting units to choose from for cutting materials. Machines from the COMAGRAV NOTUS family works in many industries in advertising production, in the production of prototypes, to demanding workshops with mass production.

Working area from 1000 x 1500 mm to 2040 x 3150 mm.

Z axis movement min. 175 mm, max. 450 mm.

Product information

COMAGRAV NOTUS is multifunctional, milling, dynamic and reliable CNC machine.

COMAGRAV NOTUS is characterized by a rigid steel construction, rich equipment, accuracy and affordable price. Comes with a steel base frame and steel portal. All connected surfaces are precisely milled.

COMAGRAV NOTUS is equipped with a 3D control system PILOT A+, with which it achieves high dynamics and high cutting quality.

Camera system is supported by printing RIP software – cropped print ad is met (Onyx, Flexi, Asanti, Colorgate, EFI Fiery, Caldera, Adobe Illustrator, …).

We will prepare configuration of the machine according to the requirements of your production.

The standard is a work table, control panel with a PC, an automatic Z-axis sensor, Cut2DPro routing and engraving software and a 3D control system with PC support. The spindles are optional, as are the scanning, MULTI heads, camera system and other software.

We offer innovative solutions for operations with insufficiently dimensioned input – thanks to the original design, COMAGRAV NOTUS allows installation even through narrow doors.

Automatic tool change – for COMAGRAV NOTUS we supply a linear or carousel tool magazine for automatic exchange of tools in spindle.

MULTI head

MULTI head is an optional equipment for the installation of two independent modules with a tangential axis. Depending on the production needs, these modules will cut or engrave. Modules for the MULTI head can be purchased later, making it easy to expand the machines functions in the future. All heads work on the entire working width of the machine, so the portal is extended accordingly.

MULTI head handles

oscillating knives
knives for direct cutting
knives for cutting fabrics
creaser wheels
Kiss-cut
V-cut
pen

Applications and industry

COMAGRAV NOTUS is designed for routing, cutting and 3D modeling

in signage production for cutting hard and soft boards, milling and cutting shapes from PMMA (acrylic), aluminium, wood, di-bond;
in the packaging industry for cutting and milling foam, cardboard, re-boards, cardboard plastic, foils,…;
in the metal industry for creating instrument panels, mechanical components, etc.:
in the production of plastic parts for milling surface and 3D shapes, molds, cutting boards;
in models production for milling prototypes, models and molds from MDF, artificial wood, aluminium, etc.

Technical specification

MECHANICS
–    3-axis CNC table
–    strong construction of steel profiles, steel portal
–    accurate ball linear guide in XYZ axes, ball screw in Z axis
–    helical racks with pinion and planetary gearbox in XY axes, double X-axis drive with automatic perpendicularity adjustment
–    powerful Mitsubishi servomotors and high-precise planetary gearboxes
–    high-pressure vacuum table or table with T-slot

Technical specification

Modules

Pneumatic oscillating knife – POT module

Ideal for cutting:

Carbon-kevlar Foamed PVC - Forex/Foamex/Simocel/Komacel Rubber Cardboard +19

Electric oscillating knife – EOT module

Ideal for cutting:

Rubber Cardboard Leatherette – Synthetic leather Leather +13

Motorised cutting disc – MCD module

Ideal for cutting:

Leatherette – Synthetic leather Leather Materials in rolls Textile +2

Universal module for U1 tools – U1 A module

Ideal for cutting:

Carbon-kevlar Foamed PVC - Forex/Foamex/Simocel/Komacel Rubber Cardboard +19

Universal module for U1 tools – U1 B module

Ideal for cutting:

Carbon-kevlar Foamed PVC - Forex/Foamex/Simocel/Komacel Rubber Cardboard +20

Professional routing spindle 9.6 kW, 24.000 RPM, pneumatic clamping ISO-30

Ideal for cutting:

Acrylic glass - PMMA Alucobond Wood and MDF Foamed PVC - Forex/Foamex/Simocel/Komacel +18

Professional routing spindle 9.6 kW, 24.000 RPM, pneumatic clamping HSK F63, with encoder

Ideal for cutting:

Acrylic glass - PMMA Alucobond Wood and MDF Foamed PVC - Forex/Foamex/Simocel/Komacel +18

Professional routing spindle 4.5 kW, 24.000 RPM, pneumatic clamping ISO-30

Ideal for cutting:

Acrylic glass - PMMA Alucobond Wood and MDF Foamed PVC - Forex/Foamex/Simocel/Komacel +18

PEN module with pneumatic parking

Ideal for cutting:

Carbon-kevlar Wood and MDF Foamed PVC - Forex/Foamex/Simocel/Komacel Rubber +19

Accessories

Camera system COMAGRAV

Carbon fiber composite portal

Laser scanning probe – 3D laser scanner

Rotary adapter for engraving cylindrical objects

Touch scanning probe SCAN COMAC 1 – 3D mechanical scanner

Tool cooling – Spray cooling system with flexible hose

Tool cooling – Cooling system COBRA

Tool cooling – Spray cooling system PROFI

Tool cooling – Spray cooling system PROFI AUTO

COMAGRAV NOTUS 1015 (type with raised Z axis)	1000 x 1500 mm
COMAGRAV NOTUS 1515	1550 x 1500 mm
COMAGRAV NOTUS 1526	1550 x 2600 mm
COMAGRAV NOTUS 1530	1550 x 3150 mm
COMAGRAV NOTUS 2030	2040 x 3150 mm
COMAGRAV NOTUS 2040	2040 x 4200 mm

Z axis movement	175 mm (450 mm NOTUS 1015)
Space under gantry	140 mm (300 mm Notus 1015)
Maximal speed	500 mm/s - 30 m/min (optionally up to 1100 mm/s - 66 m/min)
Resolution	0,00078 mm
Spindle power	up to 9.6 kW
Spindle rotation	up to 50.000 RPM
Control system	PILOT A+ 3D controller

Automatic Z sensor for setting of starting point
Emergency safety STOP buttons
X-axis double drive
Precise T-slot aluminium work table with clamps (T-slot option)
High pressure phenol vacuum table (vacuum option)
Routing and cutting software Vectric
DELL PC with 3 year warranty NBD with control panel
Windows 10 IoT Enterprise operating system
