All tools immediately ready for order processing.

Large-area cutting system for industrial cutting, powerful milling, advertising production, packaging production, sales support, exhibitions and design.

COMAGRAV DIGI CORSA processes widest range of materials.

Large-area multifunctional cutting and routing plotter COMAGRAV DIGI CORSA

DIGI CORSA – Powerful cutting and routing machines with automatic tool change. With unwinder and as a table.

Technical specification
řezací a frézovací plotr COMAGRAV DIGI CORSA visual

Find out how DIGI CORSA will speed up your production.

The main equipment for cutting and routing plotter are oscillating and fixed knives with feed speeds over 1 m/s.

Automatic tool change is standard with DIGI CORSA.

Powerful spindle with 50.000 RPM perfectly mills plexiglass, dibond, aluminum, PVC, ABS, etc.

řezací a frézovací plotr DIGI CORSA moduls

Thanks to the interchangeable modules, possibilities of material processing are almost endless.

řezací a frézovací plotr moduly

You can add modules later, the plotter will grow with your business.

You can easily process new materials and invent new applications.

řezací a frézovací plotr moduly digi

With cyclone dust collector on the table, almost no dirt remains from the machined materials. Dust collector now uses an integrated spray cooling system for aluminum and dibond. Therefore, cut is perfect and the life of the cutter is very long.

The transition from routing to cutting is a matter of seconds at DIGI CORSA, and these operations can be freely combined.

Motorised cutting disc effectively cuts tarpaulins, banners and fibrous materials, both woven and non-woven.

As with the DIGI a camera system is standard equipment of the plotter.

camera system, QR code

Applications and industry

COMAGRAV DIGI CORSA is designed for:

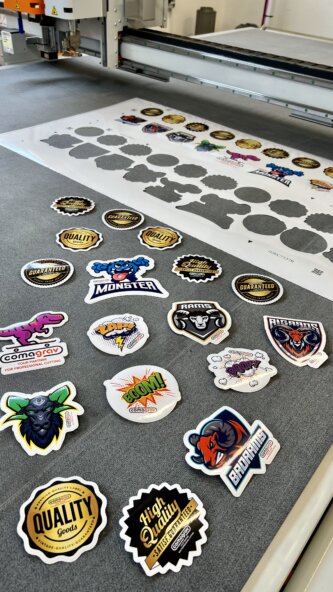

Plotter is well equipped for cutting acrylic, plexiglass, aluminum, di-bond, corrugated cardboard, carton, sandwich boards, vinyl, textile, pre-pregs, banners, etc.

COMAGRAV DIGI CORSA RC cutting and routing plotter

in addition, it has a material unwinder, where it is enough to load a roll of material into the unwinder and the integrated camera system reads the QR code from the material. This, combined with new software and preset libraries, means that the machine will cut file by file without need for a machine operator, saving time and money while reducing machine maintenance.

řezací a frézovací plotr COMAGRAV DIGI CORSA

Technical specification

Powerful AC servomotors and helical gearing in high accuracy are a matter of course. The drives use planetary gearboxes, which brings high cutting accuracy and speeds over 1 m/s.

Rigid steel frame together with robust vacuum table ensures investment in this high-quality cutting and routing table, where lifetime is calculated for decades.

Technical specification

Tools for module U1

Frequently Asked Questions for Flatbed multifunctional cutting and routing plotter COMAGRAV DIGI CORSA

Distributors and service partners:
Production, sales, service:

COMAC spol. s r.o.
Spojovací 362
25721 Poříčí nad Sázavou
Czech Republic
e-mail: [email protected]
tel: +420 317 778 022
Distributors and service partners:
Germany

Technoplot CAD Vertriebs GmbH
Dorfstrasse 17
D-85737 Ismaning, Germany
Tel.: 0049 (0) 89 99 653 5-10
http://www.technoplot.com

Greece

DALTEC S.A.
Thessalonikis 95
183 46 Moschato- Athens, Greece
Tel.: +30 210 6640511-2
http://www.daltec.gr

Hungary

Canon Hungária Kft.
Graphisoft Park 1.
H-1031 Budapest Záhony u. 7.
http://www.canon.hu

Italy

COMAGRAV ITALIA
Mr. Augusto Sartori
cell. +39.3357034810
email: [email protected]

Assistenza Tecnica Nord
Main Assitance srl
Valbrembo (BG)
tel. +39.035 528494
email: [email protected]

Assistenza Tecnica Centro Sud
Ing. Luca Di Florio
Lanciano (CH)
cell. +39.3401793400
email: [email protected]

Ireland

NEOPOST IRELAND LTD.
Unit 16 Fonthill Industrial Park
Fonthill Road
D22 F2P1 Dublin 22, Ireland
Tel.: +353 1 625 0900
http://www.neopost.ie

Lithuania

UAB “HELIOPOLIS”
Žalgirio str. 112a
LT-09300 Vilnius, Lithuania
Tel.: +370 5 2732999
http://www.heliopolis.lt

Norway

Plockmatic International AB
Telefonvägen 30
126 26 Hägersten, Sweden
Tel.: +46 8 602 50 00
http://www.plockmaticgroup.com

Russia

Forsign Ltd.
Moscow, RUSSIA
Tel.: +7 495 215 1115
http://www.comagrav.ru
http://www.forsign.ru

Slovakia

ALPHASET, spol. s r.o.
Kopčianska 19
851 01 Bratislava, Slovensko
Tel.: +421 2 6381 22 55
http://www.frezy.sk
http://www.alphaset.sk

Spain

L.I. Distribuciones S.A.
POL. IND. “LA FUENSANTA”, C/ Mercurio, 47
28936 Móstoles (Madrid), Španělsko
Tel.: +34 916166281
http://www.li-distribuciones.com

Sweden

Plockmatic International AB
Telefonvägen 30
126 26 Hägersten, Sweden
Tel.: +46 8 602 50 00
http://www.plockmatic.se

Tunisie

ABP
14 Rue Barcelone Riadh El Andalous
2058 Ariana – Tunisie
Tel.: +216 70822816
http://abptunisie.com

United Kingdom

Josero Limited
Unit 13 Buckingway Business Park
Anderson Road
Swavesey CB24 4AE
Tel.: +44 (0) 1954 232564
http://www.josero.com

x

Technical specifications

Workspace

COMAGRAV DIGI CORSA 1725/ DIGI CORSA 1725 RC1700 x 2500 mm
COMAGRAV DIGI CORSA 2034/ DIGI CORSA 2034 RC2000 x 3400 mm
Maximum material height for cutting60 mm
Maximum material height for routing80 mm
Maximum speed1150 mm/s - 69 m/min
Maximum acceleration5000 mm/s2 (depends on used tool)
Resolution0.00075 mm
Spindle power3.6 kW
Maximum spindle speed50000 RPM
ATC tray8 tools, covered
ClampingHSK E25
ColletsUltra precise ER-16 (dimension 1-10 mm)
Space under gantry80 mm
Tool coolingIntegrated in dust collector
Vacuum power5.5 kW
Vacuum zones6, software-switched
Weight2350 kg (DIGI CORSA 2034 RC)
