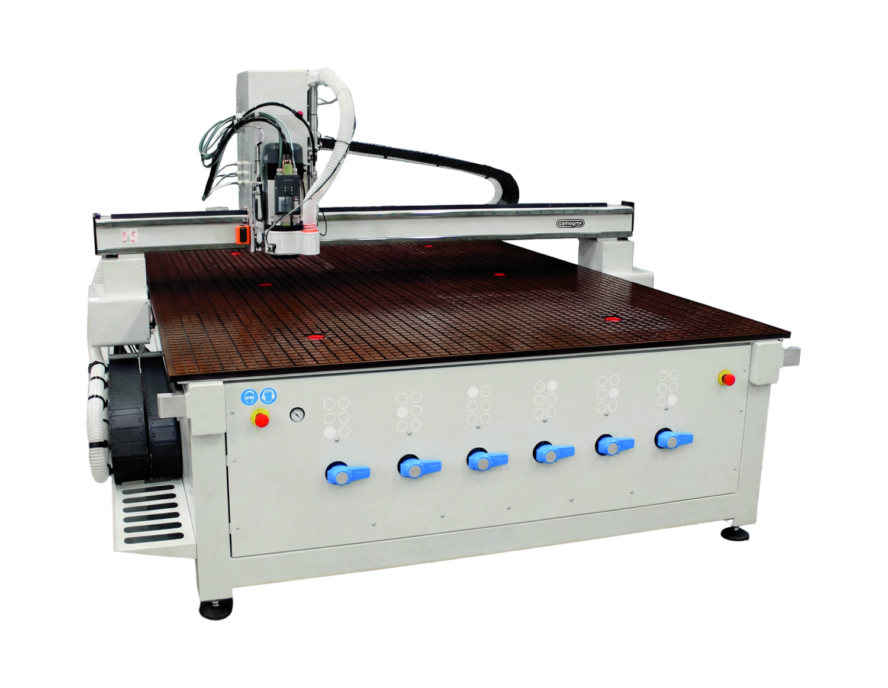

Multifunctional CNC servo router with rich equipment for professional production. The massive design of the frame is supported by high-quality welding and precise milling, it is stress relieved for its longevity.

The modern drive system with AC servo technology Mitsubishi brings high cutting speeds and accuracy proven by the measured output.

Of course, there is a wide range of top cutters and knives, without which work with the router would not be possible.

You can turn to us with confidence not only before buying the technology – we will find a suitable solution for your production as well!

We usually supply CNC servo router with a vacuum work table (aluminium on request)

The vacuum perfectly holds the material. It eliminates manual fixation with clamps.
The equipment includes an automatic Z-axis sensor, CAM software and an open control system cooperating with Windows PC.

COMAGRAV NOTUS PLUS works in many industries, ie. metal production, signage, furniture and packaging to operations with serial production in the 24/7 mode.

Working area reaches up to 6200 x 2100 mm.

Product information

COMAGRAV NOTUS PLUS construction comes with a basic frame made of thick-walled steel profiles, precisely welded and stress relieved.

Frame is equipped with precise milled beds for linear guidance and for helical racks, which serve for accurate positioning of the machine.

The machine is equipped with PILOT Advanced control system, which provides high dynamics and perfect cutting results.

We recommend COMAGRAV NOTUS PLUS for industrial applications.

ATC SPINDLE + KNIFE + CAMERA = MULTIFUNCTION

The customer chooses from a wide range of work tables and milling spindles with an output of up to 13.2 kW. For even faster routing, we mount spindles with up to 50.000 RPM. And at the same time we install cutting heads for cutting materials with a knife with/without oscillation.

MULTI head

MULTI head is an optional equipment for the installation of two independent modules. Depending on the production needs, these modules cuts using a variety of cutting tools. Modules for the MULTI head can be purchased later, making the functionality of the machine easily expandable in the future.

COMAGRAV NOTUS PLUS are large format CNC routers used:

• in the metal industry for shaping aluminum sheets, creating instrument panels, mechanical components, etc.
• in signage production for cutting large-format boards from PMMA (acrylic), di-bond, aluminium, routing and carving letters, logos, etc. Together with camera system the CNC router is suitable for cutting printed motives from digital printers;
• in production and processing of PMMA (acrylic) for routing boards, cutting shapes, 3D molds and models, cutting vacuum moldings;
• in the packaging industry for routing foam materials, for cutting corrugated, cardboard, production and prototyping of packaging;
• in automotive industry for cutting a wide range of industrial materials, in the production of gaskets, for cutting fabrics, leather, etc;
• in construction industry for cutting of facade panels, modular construction, plasterboards, etc.
• in models production for the production of prototypes, models and molds from MDF, artificial wood, aluminum.

Technical specification

MECHANICS
– 3-axis CNC table
– strong construction welded steel, steel portal
– stress relieved construction
– accurate ball linear guide in XYZ axes, covered guide, ball screw in Z axis
– helical racks with pinion and planetary gearbox in XY axes, double X-axis drive with automatic perpendicularity adjustment
– powerful Mitsubishi servomotors and high-precise planetary gearboxes
– high-pressure vacuum table or table with T-slot

Modules

Pneumatic oscillating knife – POT module

Ideal for cutting:

Carbon-kevlarFoamed PVC - Forex/Foamex/Simocel/KomacelRubberCardboard+19

Electric oscillating knife – EOT module

Ideal for cutting:

RubberCardboardLeatherette – Synthetic leatherLeather+13

Motorised cutting disc – MCD module

Ideal for cutting:

Leatherette – Synthetic leatherLeatherMaterials in rollsTextile+2

Universal module for U1 tools – U1 A module

Ideal for cutting:

Carbon-kevlarFoamed PVC - Forex/Foamex/Simocel/KomacelRubberCardboard+19

Universal module for U1 tools – U1 B module

Ideal for cutting:

Carbon-kevlarFoamed PVC - Forex/Foamex/Simocel/KomacelRubberCardboard+20

Professional routing spindle 13.2 kW, 24.000 RPM, pneumatic clamping ISO30

Ideal for cutting:

Acrylic glass - PMMAAlucobondWood and MDFFoamed PVC - Forex/Foamex/Simocel/Komacel+18

Professional routing spindle 4.5 kW, 24.000 RPM, pneumatic clamping ISO-30

Ideal for cutting:

Acrylic glass - PMMAAlucobondWood and MDFFoamed PVC - Forex/Foamex/Simocel/Komacel+18

PEN module with pneumatic parking

Ideal for cutting:

Carbon-kevlarWood and MDFFoamed PVC - Forex/Foamex/Simocel/KomacelRubber+19

Accessories

Camera system COMAGRAV

Carbon fiber composite portal

Laser scanning probe – 3D laser scanner

Rotary adapter for engraving cylindrical objects

Touch scanning probe SCAN COMAC 1 – 3D mechanical scanner

Tool cooling – Cooling system COBRA

Tool cooling – Spray cooling system PROFI

Tool cooling – Spray cooling system PROFI AUTO

Air conditioning 300W, mounting on the cabinet

Tools for module U1

U1 DIR 1.45 – Knife tool U1

Suitable for cutting:

Foamed PVC - Forex/Foamex/Simocel/KomacelRubber+13

U1 DIR 1.45 PREF – Knife tool U1 with pressure foot

Suitable for cutting:

Foamed PVC - Forex/Foamex/Simocel/KomacelRubber+13

U1 DIR HSS – Knife tool U1 HSS

Suitable for cutting:

Glass wool

U1 DIR HSS 5 – Knife tool HSS 5 mm

Suitable for cutting:

Vinyl

U1 PEN – Knife tool U1

Suitable for cutting:

Carbon-kevlarWood and MDF+20

U1 CRW 3PT – Creaser wheel U1 mini 3pt

Suitable for cutting:

CardboardPaper+1

U1 CRW 2PT – Creaser wheel U1 mini 2pt

Suitable for cutting:

CardboardPaper+1

U1 CRW 4PT – Creaser wheel U1 mini 4PT

Suitable for cutting:

CardboardPaper+1

U1 CRW L – Creaser wheel U1 large

Suitable for cutting:

CardboardPaper+2

U1 CRW M – Creaser wheel U1 medium

Suitable for cutting:

CardboardPaper+2

U1 CRW S – Creaser wheel U1 small

Suitable for cutting:

CardboardPaper+2

U1 CUW – Cutting wheel U1

Suitable for cutting:

Carbon-kevlarRubber+4

U1 DIR 0.63 – Knife tool U1 thin

Suitable for cutting:

Materials in rollsPaper+3

U1 KISSCUT – KISSCUT tool U1

Suitable for cutting:

Materials in rollsPaper+1

U1 VCUT 0.63 – VCUT tool U1 carbide 0.63 mm

Suitable for cutting:

CardboardPaper+5

U1 VCUT 1.00 – VCUT tool U1 carbide 1.00 mm

Suitable for cutting:

CardboardPaper+5

U1 VCUT HSS – VCUT tool U1

Suitable for cutting:

PaperStadur+1
