Camera system COMAGRAV
Kamerový systém pro tiskové značky
Have you ever encountered the problem that customer requires you not only to print the graphic, but also to cut it into the desired shape? If you already own a CNC router without camera technology, you may know that it is not easy. Printing does not match the specified size and placement on the desktop is difficult because the graphics do not have clearly defined edges.

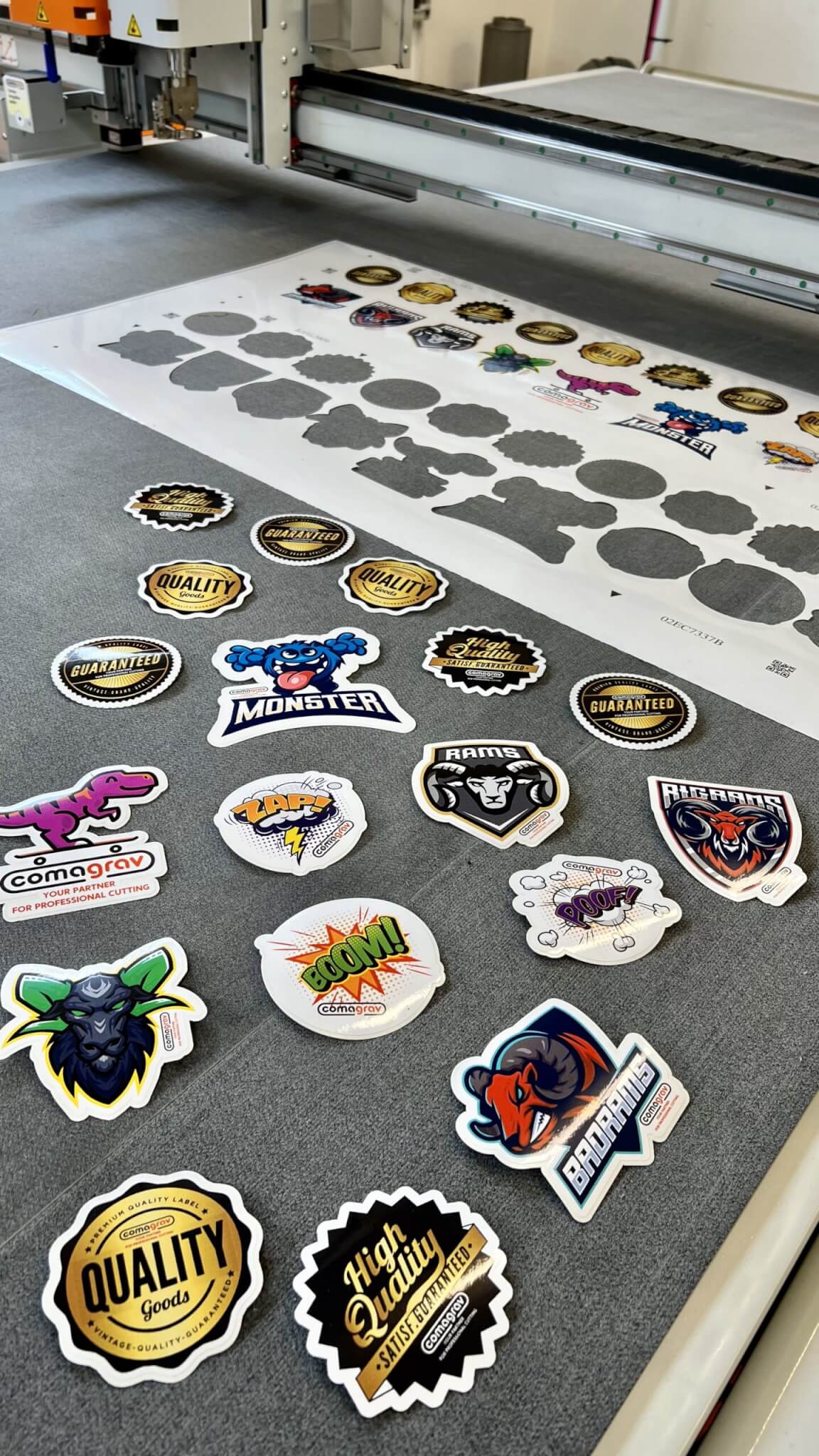

For operators of digital printers and UV flatbeds, we supply a highly developed technology – the Camera system. This equipment allows you to mill or cut the path directly onto the printed material. The camera is located close to the spindle or multifunction cutting head, so it can find print marks and cut the job with high accuracy where the graphics are printed.
COMAGRAV camera system finds 3 or 4 marks, recalculates the paths to correspond to the actual size and rotation, and makes cut in right way.
The camera system also means a lot of help for orders without printing marks, especially on machines with a large work surface. It helps operator to see if he has placed material straight on the surface, and also helps him to set the beginning of the material without having to get up from the chair!
To set the cut on print marks and determine the position of the workpiece.
Camera installed near the spindle or cutting heads to read the position of the preprinted motive.
uses the position of the markers to calculate the position of the graphics for subsequent trimming.
Likewise, the system can automatically adjust
size and rotation to the physical size of the print.
Drivers for COMAGRAV can be found in most RIP programs – Onyx, Caldera, AGFA Asanti, Sai Flexi, Colorgate, EFi
Fiery, Adobe Illustrator, etc.). Data preparation is very easy
COMAGRAV camera system reads QR codes from your printed materials. Operator does not have to search for the correct
file and can let the system load the cutting data automatically!
